DMD 004
Dot Matrix Driver Board compatible with Data East, Sega and some Stern Pinball pinball games. The board that this replaces are: 520-5044-03, 520-5055-00, and 520-5055-03
DMD 089
Dot Matrix Driver Board compatible with Williams WPC89 and WPC-S pinball games. The board that this replaces is Bally / Williams part numbers A-14039 (all versions).
This board is a direct plug in replacement for the original OEM driver board.
The high voltages produced by this board are nominally set for -110V, -100V and +64V. These voltages can be adjusted but you would need to change resistor va

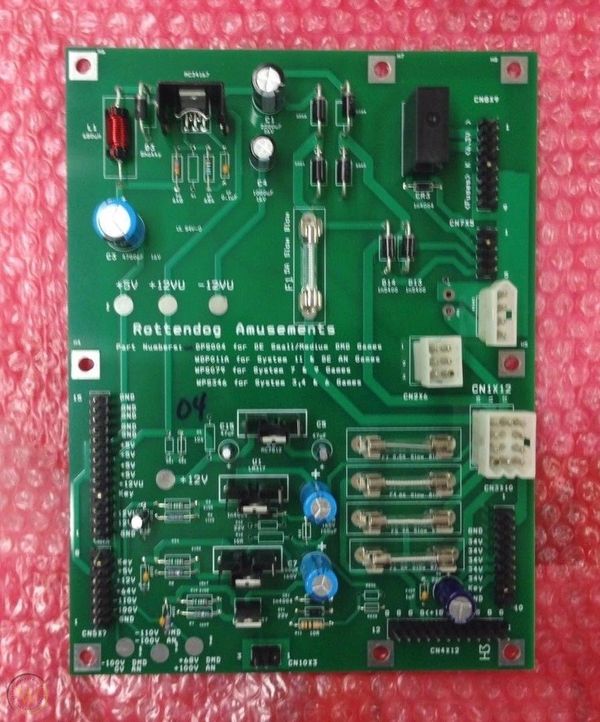

DPS 005
Power Supply compatible with all Data East small and medium sized DMD pinball games.
This board is a direct plug in replacement for the original OEM power supply.
The original power supply that this board replaces is Data East part numbers
520-5047-00, 520-5047-01, and 520-5047-02
GDB 080
This board is a direct plug in replacement for the original Gottlieb System 80 pinball Driver Board. This covers all System 80, 80A and 80B pinball games and works with all licensed Gottlieb MPUs and power supplies.
MPU 004
MPU004– This completely redesigned board replaces Data East’s MPU / Driver Board part numbers: 520-50003-01, 520-50003-02, 520-50003-03 and 520-50003-04.
Our boards are plug-and-play compatible with the original board set (assuming the common 512k Game ROM).
.jpg/:/rs=w:600,cg:true,m)
MPU 089
This board is a plug and play replacement for the original Bally / Williams WPC089 MPU processor board. The original MPU board that this board replaces is Bally / Williams part number A-12742-xx (where xx is the game number).
MPU 095
This board is a plug and play replacement for the original Bally / Williams WPC95 MPU processor board. The original MPU board that this board replaces is Bally / Williams part number A-20119-xx (where xx is the game number).
MPU 327
This board replaces both the MPU board AND the Driver board for ALL Williams System 3, 4, and 6 pinball games.
MPU 9211
Rottendog replacement CPU for Williams and Bally System 9 and System 11 A B and C pinball machine. This has a built-in amplifier for the early System 11.
This board replaces Williams Part numbers: D-10534, D-10535 (S9), D-10881 (S11A), D-11392 (S11A), D-11883 (S11B)
MPU SEC
This board is a plug and play replacement for the original Bally / Williams WPC-S Security MPU processor board. The original MPU board that this board replaces is Bally / Williams part number A-17651-xx (where xx is the game number).

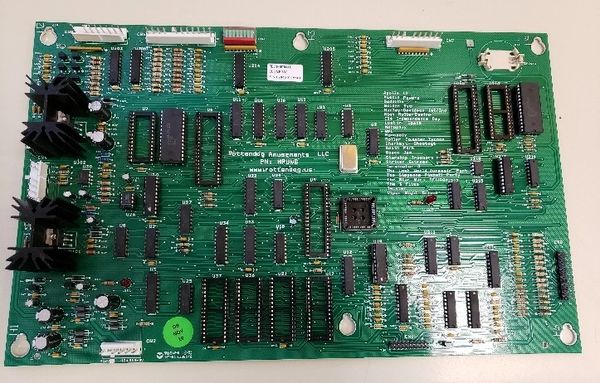

MPU WS
This board is a replacement for the original Stern Pinball MPU processor & Sound board. This board replaces the BSMT2000 version (early).
This board is shipped to our distributors WITHOUT the following chips which can be easily swapped out from the original board.
U21 - Game Specific ROM, U209 - 68B09E, U9 - Note: If U100 is added from our supplier do NOT move U9. Never have both, U6 - 68B09E, U7 - Game Specific ROM, U21 - Game Specific ROM, U36 - May Not Be Used
U37 - May Not Be Used
PPB 001
Playfield Power Board (PPB) used in most Data East pinball machines. See game listing below to see which games this driver board supports.
This board is a direct plug in replacement for the original OEM power supply.
The original PPB boards that this board replaces are Data East part numbers: 520-5021-00 and 520-5021-05
SDB 004
SDB004 – Driver Board compatible with Stern White Star pinball games. The board that this replaces is Stern part number 520-5137-01
This board is a direct plug in replacement for the original OEM driver board.
WDB 089
Driver Board compatible with Williams WPC89 and WPC-S pinball games. The boards that this replaces are Bally / Williams part numbers A-12697-1, A-12697-3, and A-12697-4.
This board is a direct plug in replacement for the original OEM driver board.
WDB 095
Pinball Driver Board compatible with Williams WPC95 pinball games. The board that this replaces is Bally / Williams part number A-20028 .
This board is a direct plug in replacement for the original OEM driver board.
